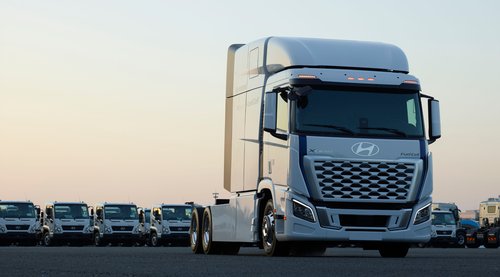

Hyundai XCIENT
Hydrogen is the fuel of the future—clean, efficient, and ready to replace diesel.
Hyundai XCIENT
Hydrogen is the fuel of the future—clean, efficient, and ready to replace diesel.
Hyundai XCIENT
Hydrogen is the fuel of the future—clean, efficient, and ready to replace diesel.
Hyundai XCIENT
Hydrogen is the fuel of the future—clean, efficient, and ready to replace diesel.
Superior Performance
Confident Power
The heart of the XCIENT Fuel Cell is its twin array of 90 kW hydrogen fuel cells and 350 kW e-motor, delivering 1,650 lb-ft of torque.
Proven Range
The XCIENT Fuel Cell comes with 10 high pressure hydrogen tanks, carrying up to 70 kg of fuel to deliver a class-leading driving range of up to 450 miles.

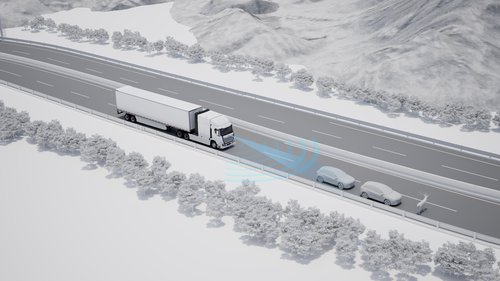

Advanced Driver Assistance System
From city streets to highways, the ADAS system provides the highest level of safety and security with industry-leading object detection and real-time alerts. Radars on both the driver and passenger sides lay the foundation for advanced performance for greater convenience and awareness every mile of the way.
Intelligent Driver Information System
Battery Monitoring
The thermal detection system monitors cell voltage and the temperature rise rate in real time, triggering alerts when needed.

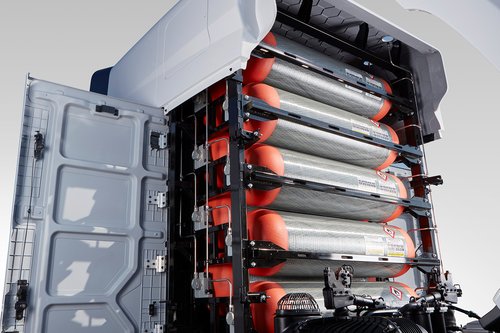

Hydrogen Safety
Advanced leak detection systems provide continuous monitoring while high-strength carbon fiber tanks store hydrogen safely at 700 bar, ensuring impact resistance and thermal stability.
Forward-Thinking Design

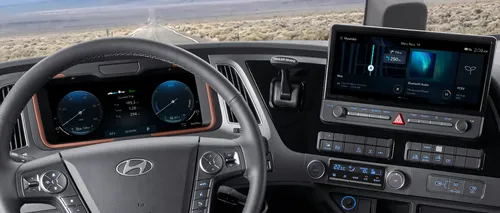

Ideal Cockpit Layout
The cockpit has been reimagined to enhance cabin comfort, visibility, and convenience, ensuring an intuitive and ergonomic driving environment.
Improved Visibility
The cab-over design delivers significant advantages for the driver, including superior visibility, minimized blind spots, and easier maneuvering in challenging environments.
Smarter Technology

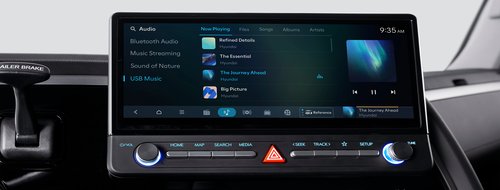

Wide Screen, Wider Information
A 12.3-inch intuitive touchscreen eases cognitive load and makes each drive more enjoyable. Directly below the head unit, a row of physical buttons flanked by rotary control dials serves as one-touch shortcuts to access the most commonly utilized functions.

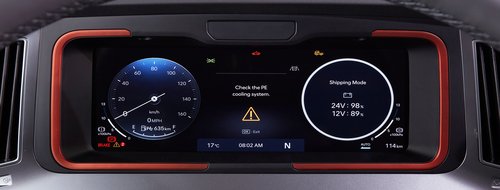

Command Center

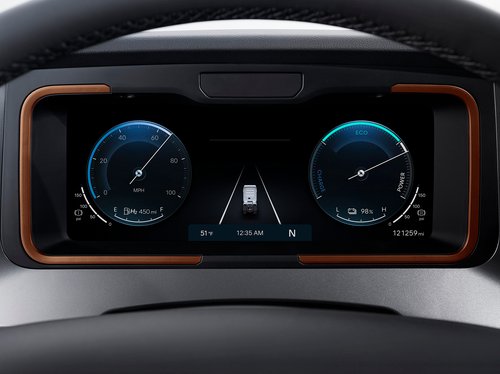

A 12.3-inch all-digital gauge cluster is designed to be very easy on the eyes, whether driving at night or during the day, and packs a wide array of helpful information that can be accessed at a glance.

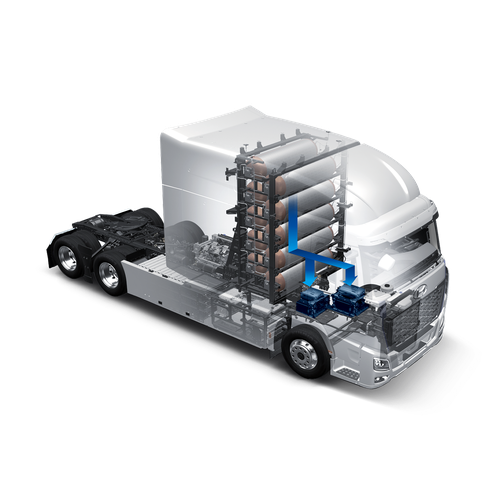

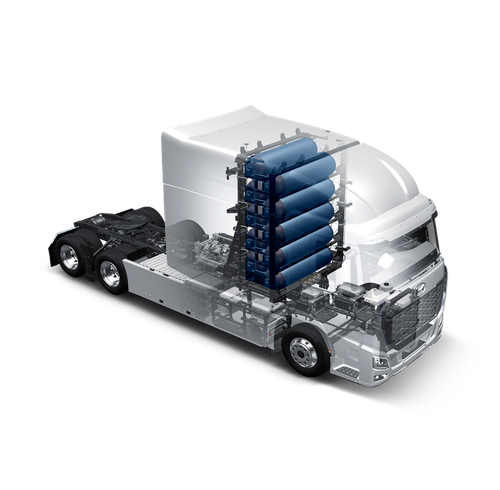

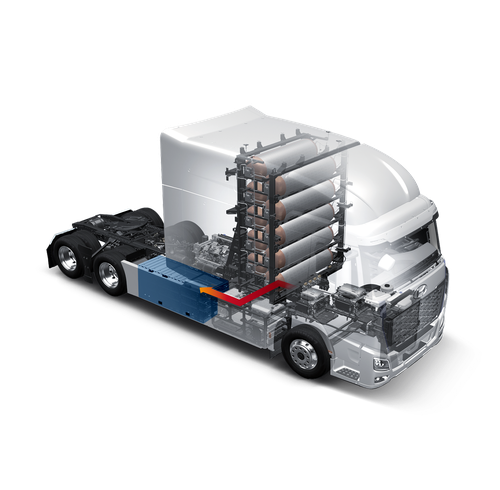

Hydrogen Tank
Hydrogen tank is the first place where hydrogen reaches when charged. Hydrogen, which starts from here, is converted into electricity through a fuel cell system.

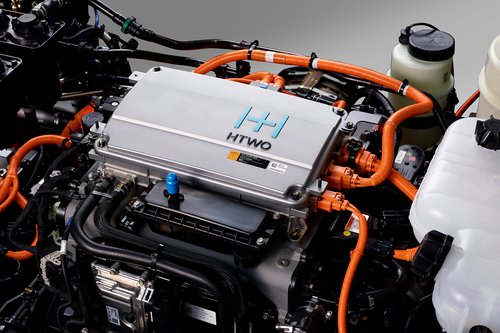

Fuel Cell System
Fuel Cell System that generates the electricity to drive, is also called a tertiary battery. This runs with hydrogen tank, to convert thermal energy into electrical energy.

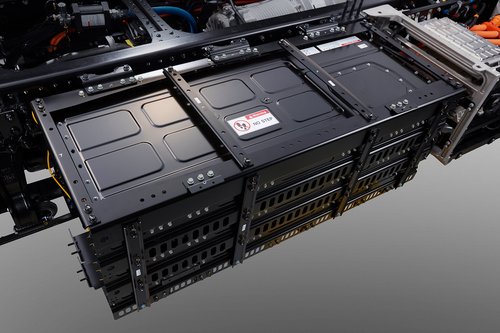

Battery
Lithium-ion polymer batteries store electricity, generated by fuel cell system. The batteries have a lower memory sensitivity and excellent charge efficiency compared to conventional ones.

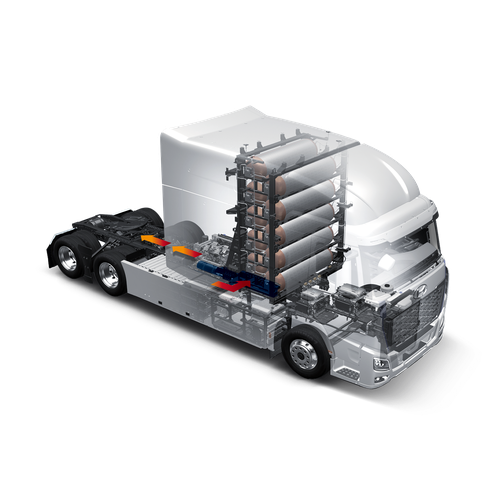

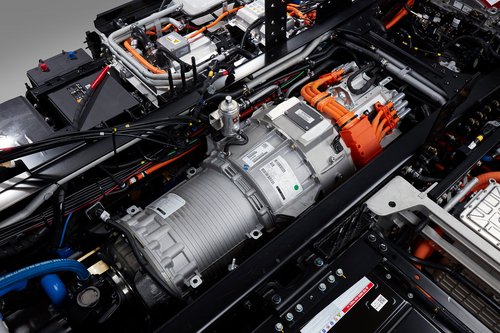

Motor
A motor then converts the electricity produced in the fuel cell system and stored in the high-voltage battery to kinetic energy. This energy sets driving axle in motion. Just like in hybrid and battery electric cars, a regenerative braking system moves electricity back to the battery when the driver uses the brake, improving fuel economy.

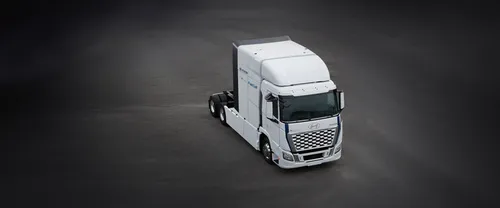

Inspired by the road
XCIENT Fuel Cell sets the standard for efficiency by combining design and engineering breakthroughs that enhance aerodynamics and lower costs.

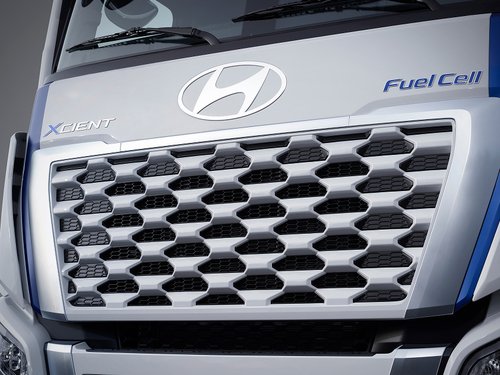

Flush-type front panel and badges

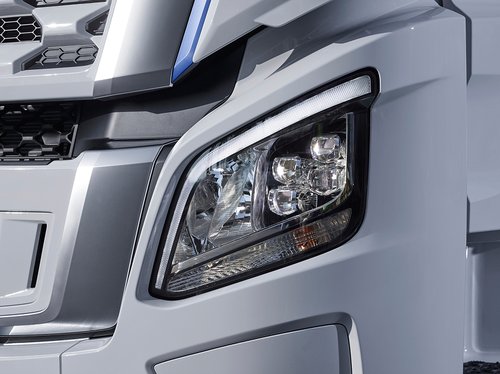

LED headlamps with DRL

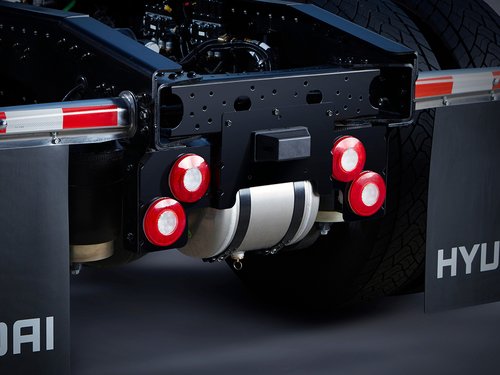

New layout LED rear combination lamps

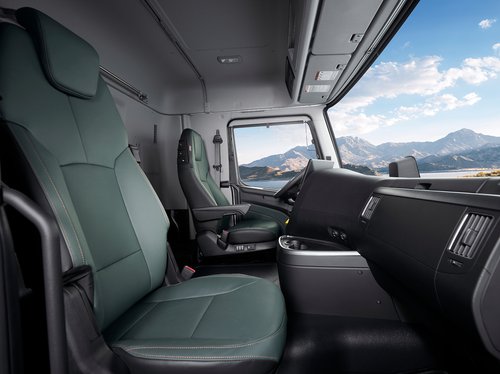

Step inside excellence,
Discover unmatched comfort
The black and dark sage two-tone seats provide a premium feel while the intuitive center console streamlines navigation with quick-access menus and a seamless modern interface, ensuring a smarter and more connected driving experience.
10-Way adjustable seat with 3-stage seat cooling and heating
12.3-inch digital gauge cluster

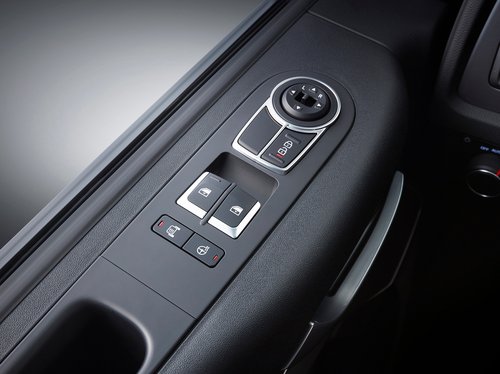

Easy control for driver convenience
10-Way adjustable seat with 3-stage seat cooling and heating
12.3-inch digital gauge cluster
Easy control for driver convenience

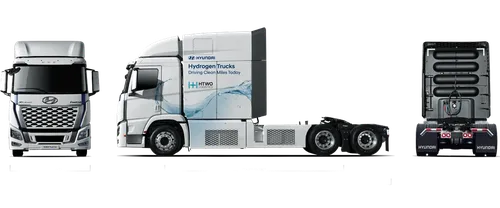

XCIENT Key Specs
- Cab Type
- Day Cab
- Configuration
- 6x4
- Wheelbase
- 223 inch
- Overall Length
- 346 inch
- Overall Width
- 102 inch
- Overall Height
- 161 inch
- Gross Combination Weight
- 82,000 lbs
Fuel Cell Specs
- Fuel Cell System
- 180kW (2x90kW each)
- Battery
- 72 kWh (3x24 kWh each)
- Motor
- 350 kW
- Transmission
- 5-Speed Automatic Transmission
- Hydrogen Tanks Filling Pressure
- 700 Bar
- Hydrogen Tank Capacity
- 68.6 kg
- All-Electric Range (AER)
- 450 miles with full load
